Jwell Dyps-G Series Strong Crusher Recycling Tshuab
| Qhov chaw ntawm keeb kwm: | Tuam Tshoj |
| Hom Npe: | Dyun |
| Certification: | CE CE ISO |
| Yam Tsawg Tshaj: | 1 |
| Ntsiab lus uas them: | 30% tso cia them los ntawm T / T, 70% so them ua ntej khoom xa tuaj los ntawm T / T. |
daim ntawv sau npe
Sib tsoo ntawm ntau yam kav dej, profiles, zaj duab xis, nplooj ntawv thiab cov khoom loj loj.
Hauj lwm
No series hnyav yeeb nkab crusher tsis tas yuav shredding rau nruab nrab-inch kav, thiab tuaj yeem ncaj qha crushed thiab rov siv dua hauv ib kauj ruam.
Qhov tshwj xeeb tsim yeeb nkab pub hopper ntawm cov qauv no nkag mus rau hauv cov yeeb nkab thiab tsim ib lub kaum ntse ntse nrog lub crusher rotor kom ua tiav qhov zoo tshaj plaws crushing nyhuv. Lub crushing ntev ntawm cov kav dej thiab cov profiles tuaj yeem ncav cuag 6 meters.
Nws kuj muaj rotor loj bearings, cuab yeej racks thiab rotors. Tus qauv V-shaped txiav tshuab yog qhov tsim nyog los txhim kho kev txiav rov qab ua haujlwm thiab txo cov plua plav cov ntsiab lus hauv cov khoom siv rov ua dua tshiab.
Rau cov ntaub ntawv uas muaj zog dua thiab loj dua ntim, qhov cuam tshuam quab yuam tuaj yeem raug txo, thiab tib lub sijhawm.Nws kuj zam tau qhov muaj peev xwm ntawm cov spindle txav cov cuab yeej raug thaiv los ntawm cov khoom siv.Tshwj xeeb steel thiab muaj zog vuam tshuab ua kom cov khoom zoo.
Lub zog yog nyob rau hauv thaj tsam ntawm 22-160KW, cov zis yog nyob nruab nrab ntawm 450-1200kg / h.
Specifications
| qauv | Pub Lub Qhov Ncauj Loj (MM) | Main Lub cev muaj zog (KW) | Moving Riam Quantity (PIS) | Fixed Riam Quantity (PIS) | Rotor txoj kab uas hla (MM) | Kev xa tawm (KG / H) |
| DYPS-G 700 | 310*300 | 22-37 | 6 | 4 | Ф500 | 450 |
| DYPS-G 800 | 360*350 | 55-75 | 6/10 | 6 | Ф600 | 650 |
| DYPS-G 1000 | 510*500 | 75-110 | 10/14 | 6 | Ф700 | 850 |
| DYPS-G 1200 | 650*650 | 110-160 | 14/18 | 6 | Ф800 | 1200 |
Kev Tshaj Loj (Competitive Advantage)
Long Service Life, sustainable, sis tw nqi

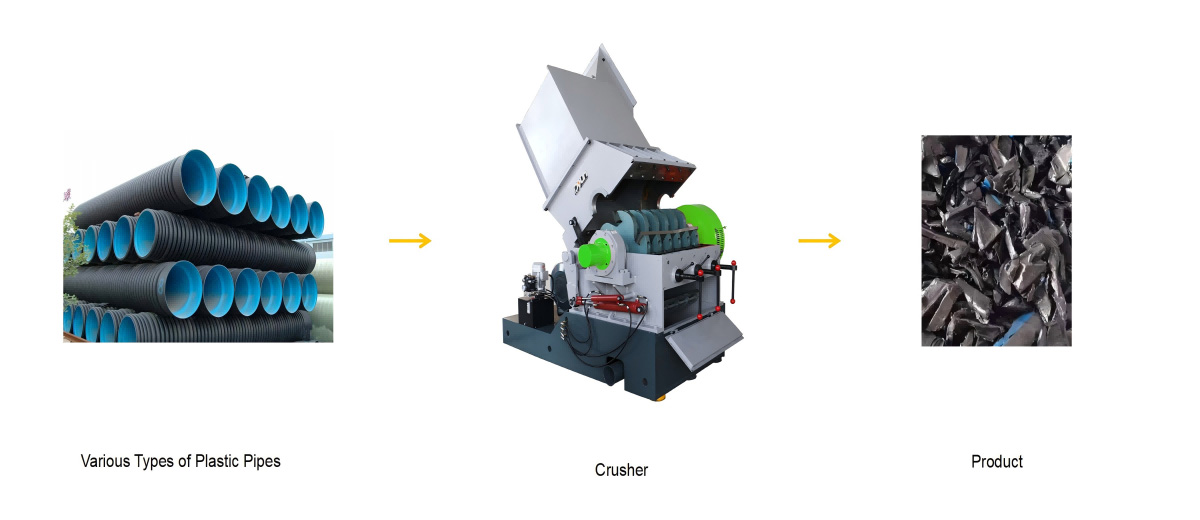

Txheej txheem cov kauj ruam
Zaub mov xa tuaj
FAQ
Q: JWELL feem ntau tsim cov khoom siv dab tsi?
A: Txhua yam ntawm cov ntawv & phaj extrusion kab, yeeb nkab extrusion kab, profile extrusion kab, compounding kab, rov ua dua tshuab, tshuab-molding, tshuaj fiber khoom siv thiab lwm yam khoom tseem ceeb.
Q: Koj puas muab kev pabcuam teeb tsa thiab commissioning rau cov haujlwm txawv teb chaws?
A: Yog, peb tuaj yeem muab tau
Q: Cov tshuab puas ua raws li cov ntawv pov thawj thoob ntiaj teb CE thiab ISO?
A: yog.
