JWELL Starch Filled Bio-plastic Compounding Kab
| Qhov chaw ntawm keeb kwm: | Tuam Tshoj |
| Hom Npe: | jwell ua |
| Certification: | ISO CE UL TUV |
| Kev sib tw kom zoo dua: | Kev ua tau zoo, muaj peev xwm siab, muaj kev ruaj ntseg, thoob ntiaj teb kev pab cuam tom qab muag, ntau tshaj 40 xyoo tsim kev paub |
daim ntawv sau npe
Cov thawv ntim khoom noj uas siv tau pov tseg, riam thiab rab rawg, straws, khob, lub hnab yuav khoom, hnab xa khoom, mulching zaj duab xis thiab lwm yam khoom siv degradable.
Hauj lwm

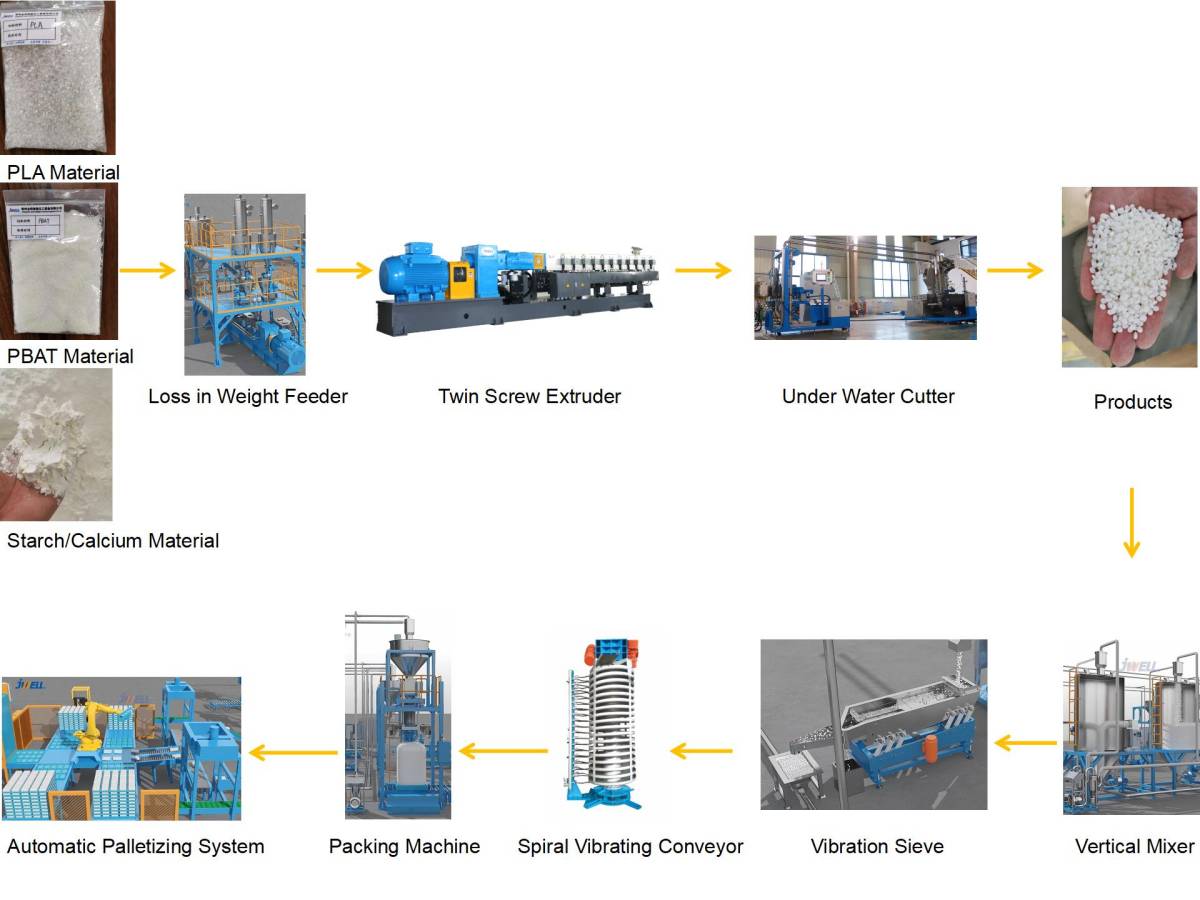

Cov hmoov txhuv nplej siab puv bio-plastic compounding kab yog tsim los ntawm plaub ntu. Lawv yog dosing system, compounding system, underwater txiav system, downstream auxiliary khoom.
Dosing system muaj lub tshuab nqus tsev loader rau pellet, refill silo rau pellet, ib leeg ntsia hlau poob hauv qhov hnyav feeder, nqus loader rau hmoov, refill silo rau hmoov, ntxaib ntsia hlau poob rau hauv qhov hnyav feeder, kua poob hauv qhov hnyav feeder.
Raws li kev ywj pheej thiab raug kev siv tshuaj, cov khoom siv raw ntawm bio-yas, hmoov txhuv nplej siab thiab plasticizer yog ntxiv rau lub ntxaib ntsia hlau extruder, uas muaj cov qib siab ntawm automation thiab muaj zog elasticity ntawm kev hloov kho mis.
Compounding system muaj tswj txee, gearbox, kev nyab xeeb clutch, lub ntsiab extruder thiab lub ntsiab lub cev muaj zog. Ua kom muaj cua sov zoo thiab kev tswj xyuas meej kom ruaj khov, txhim khu kev qha thiab ua haujlwm ntev.
Underwater tej tshuab muaj xws li dej ncig system, cutter, dej tank, dewatering unit. Lub kaw lus kaw yog ib puag ncig tsis muaj pa taws thiab plua plav.
Kev Tshaj Loj (Competitive Advantage)
| qauv | L/D ratio | ceev | Lub cev muaj zog | Qib Torque qib | Muaj peev xwm siv tau | Cov mis mos siv |
| CWJ-52 | 40-56 | 300 rpm / feeb | 45KW | 9 N.m/cm3 | 150 kg / h | Bio-yas + 55% Hmoov txhuv + 15% Glycerine |
| CWJ-65 | 40-56 | 300 rpm / feeb | 75KW | 9 N.m/cm3 | 240 kg / h | |
| CWJ-75 | 40-56 | 300 rpm / feeb | 132KW | 9 N.m/cm3 | 440 kg / h | |
| CWJ-95 | 40-56 | 300 rpm / feeb | 250KW | 9 N.m/cm3 | 820 kg / h | |
| CWJ-52 | 40-56 | 300 rpm / feeb | 55KW | 11 N.m/cm3 | 190 kg / h | |
| CWJ-65 | 40-56 | 266 rpm / feeb | 90KW | 11 N.m/cm3 | 310 kg / h | |
| CWJ-75 | 40-56 | 300 rpm / feeb | 160KW | 11 N.m/cm3 | 550 kg / h | |
| CWJ-95 | 40-56 | 300 rpm / feeb | 315KW | 11 N.m/cm3 | 1060 kg / h | |
| CJWS-75 Ntxiv | 44-56 | 330 rpm / feeb | 200KW | 13.5 N.m/cm3 | 700 kg / h | |
Txheej txheem cov kauj ruam
Zaub mov xa tuaj
FAQ
Q: JWELL feem ntau tsim cov khoom siv dab tsi?
A: Txhua yam ntawm cov ntawv & phaj extrusion kab, yeeb nkab extrusion kab, profile extrusion kab, compounding kab, rov ua dua tshuab, tshuab-molding, tshuaj fiber khoom siv thiab lwm yam khoom tseem ceeb.
Q: Koj puas muab kev pabcuam teeb tsa thiab commissioning rau cov haujlwm txawv teb chaws?
A: Yog, peb tuaj yeem muab tau
Q: Cov tshuab puas ua raws li cov ntawv pov thawj thoob ntiaj teb CE thiab ISO?
A: yog.
