Txaus siab rau qhov khoom plig tau txais txiaj ntsig ntawm 5th "Tuam Tshoj Yas Tshuab Style" Photography Exhibition

Lub lens ntawm qhov xwm txheej, ib qho los ntawm ib qho los qhia txog tus qauv tshiab ntawm kev txhim kho ntawm kev lag luam yas tshuab, qhia txog "tus txiv neej tshuab yas" tus qauv tshiab siab ntawm daim duab kho. Lub koom haum kev lag luam yas tshuab Tuam Tshoj tau teeb tsa ntawm qhov thib tsib "Kev nthuav qhia tshuab yas Suav", Tom qab daim ntawv thov kev pom zoo thiab kev tshuaj xyuas ntawm cov kws tshaj lij, cov kws txiav txim plaub tau xaiv zoo los ntawm ntau daim ntawv xa tuaj, thiab cov haujlwm zoo tshaj plaws sawv tawm ib qho los ntawm ib qho. Cov haujlwm no ua raws li lub ntsiab lus thiab qhia txog kev zoo nkauj ntawm "Tuam Tshoj cov xovxwm" los ntawm ntau lub kaum sab xis. Kev zoo nkauj ntawm tib neeg thiab cov khoom siv tso cai rau thaj av, zaj dab neeg, thiab kab lis kev cai kom nthuav tawm hauv qab lub lens.

Kev sib qhia qee cov haujlwm tau txais txiaj ntsig ntawm Jwell

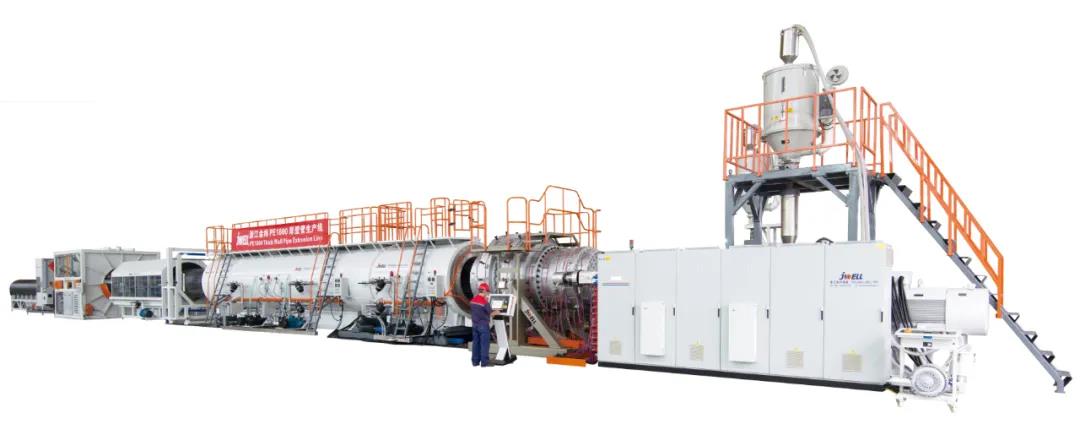

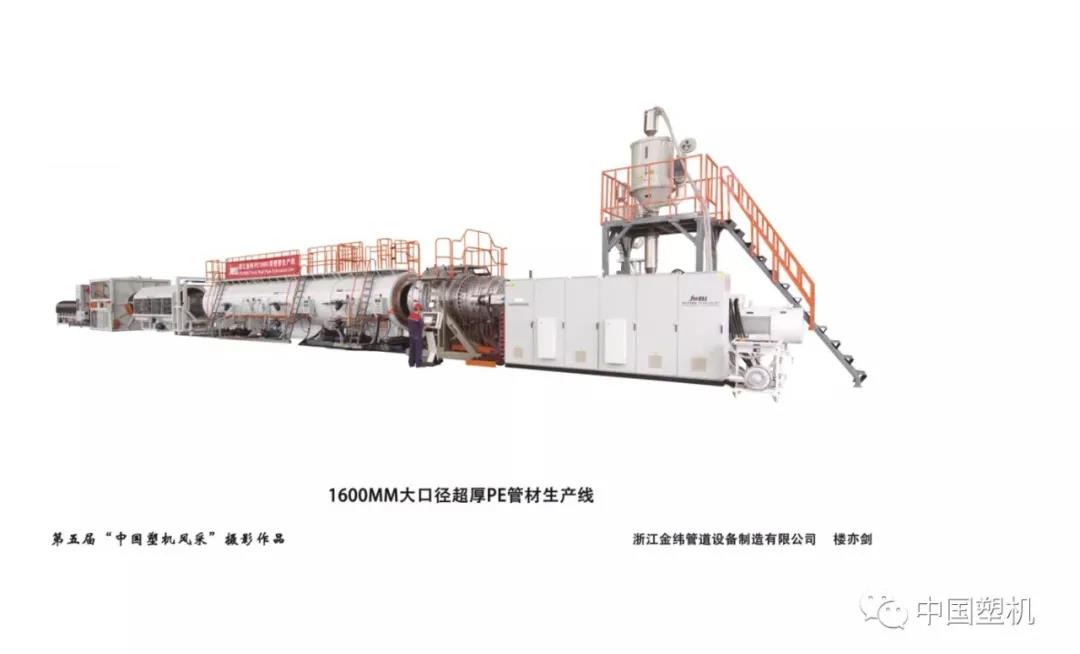

● PE yeeb nkab tuab phab ntsa ABA peb txheej co-extrusion
● Qhov dav ntawm sab nraud: 900mm-1600mm
● Kev tswj kub ntse
● Qhov siab tshaj plaws ntawm phab ntsa uas tuaj yeem tsim tau: 110mm
● Ob-tshuab co-extrusion, qhov tso zis siab tshaj plaws: 1800KG / H

● Cov khoom siv extruder uas muaj plasticizing siab thiab cov extruder uas tsis tshua muaj shear, cov zis extrusion ncav cuag 1500Kg/h, kev siv zog extrusion tsuas yog 448KW/h xwb
● Lub taub hau pwm extrusion tsis siv neeg ntawm 8-meter dav geomembrane muaj cov qauv dai tsho sab hauv lub qhov. Kev tshuaj xyuas cov dej ntws yog ua los ntawm software simulation, yog li cov khoom siv tau faib sib npaug hauv lub qhov. Lub cua sov sab hauv tsis sib sau ua ke hauv zos, yog li cov khoom siv tau extruded sib npaug ntawm lub pwm.

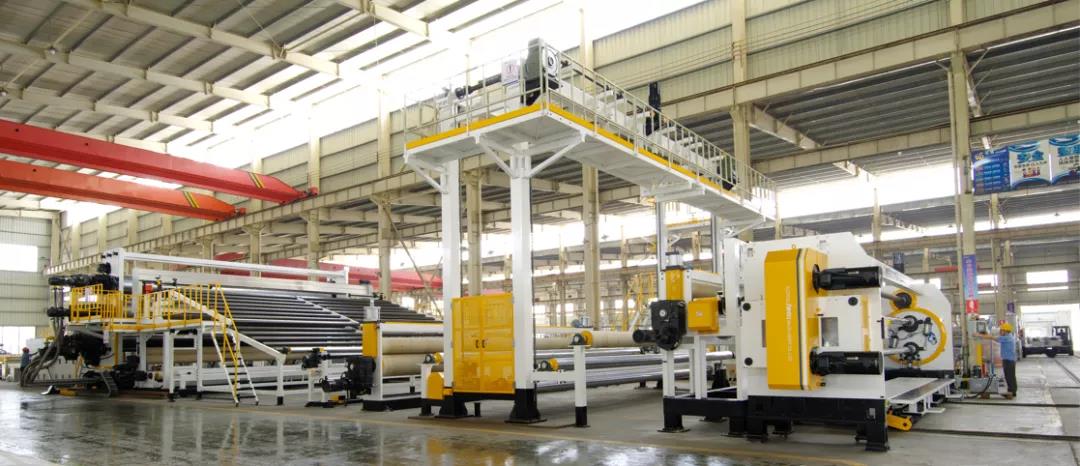

● Lub calender ntawm 8-meter dav geomembrane high-speed extrusion kab ntau lawm, lub roller yog ob-txheej, lub built-in reciprocating spiral flow channel, qhov loj ntws, qhov kub thiab txias ua haujlwm siab, thiab cov khoom tsim kub yog sib xws.
● Lub txee cia khoom dav dav thiab lub tshuab cua tshuab tsis siv neeg. Lub txee cia khoom tuaj yeem ntab tau saum thiab nqis raws li qhov kev nruj kev nyab xeeb teeb tsa kom ntseeg tau tias qhov kev nruj ntawm qhov chaw ntawm cov khoom ua rau geomembrane tsis ncab lossis xoob. Lub tshuab cua tshuab tsis siv neeg tuaj yeem xam qhov txoj kab uas hla ntawm cov yob raws li qhov kev nruj teeb tsa, thiab txiav tau raws li qhov ntev teeb tsa kom ntseeg tau tias qhov ntev ntawm cov xov, thiab qhov yuam kev ntawm qhov ntev ntawm cov xov yog nyob rau hauv ntxiv lossis rho tawm 5 hli. Qhov poob ntawm qhov siab nruab nrab ua rau daim ntawv poob rau ntawm lub pas nrig inflatable, uas yooj yim rau cov neeg ua haujlwm kho nrog cov ntsia hlau.

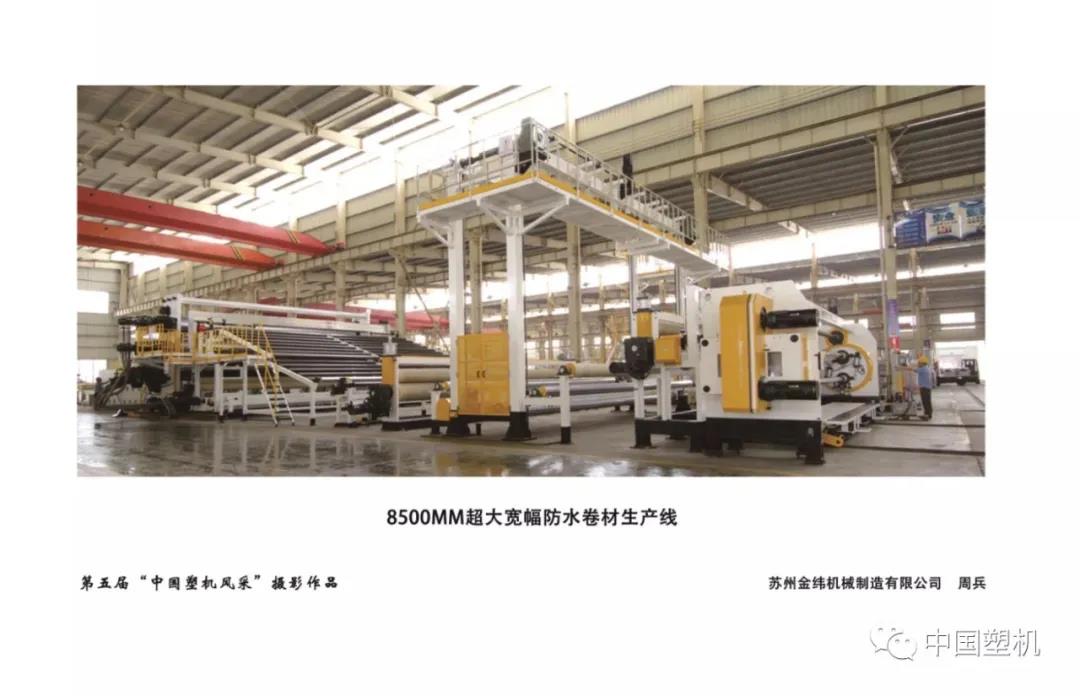

● Ntau yam khoom ntau yam 5-8.5 meters

● Jwell yog ib lub tuam txhab tsim cov khoom siv tiv thaiv dej polymer hauv Suav teb. Nws tau muab cov khoom siv ua tiav rau Driental yuhong, Karen, Joaboa, GSE, Sika thiab lwm lub tuam txhab tiv thaiv dej zoo tshaj plaws hauv tsev thiab txawv teb chaws. Nws yog qhov tsim nyog rau kev tsim ntau yam khoom siv thiab ntau txheej tiv thaiv dej nrog cov qauv sib txawv. Qhov dav tshaj plaws ntawm cov khoom tiav tuaj yeem ncav cuag 9000mm.

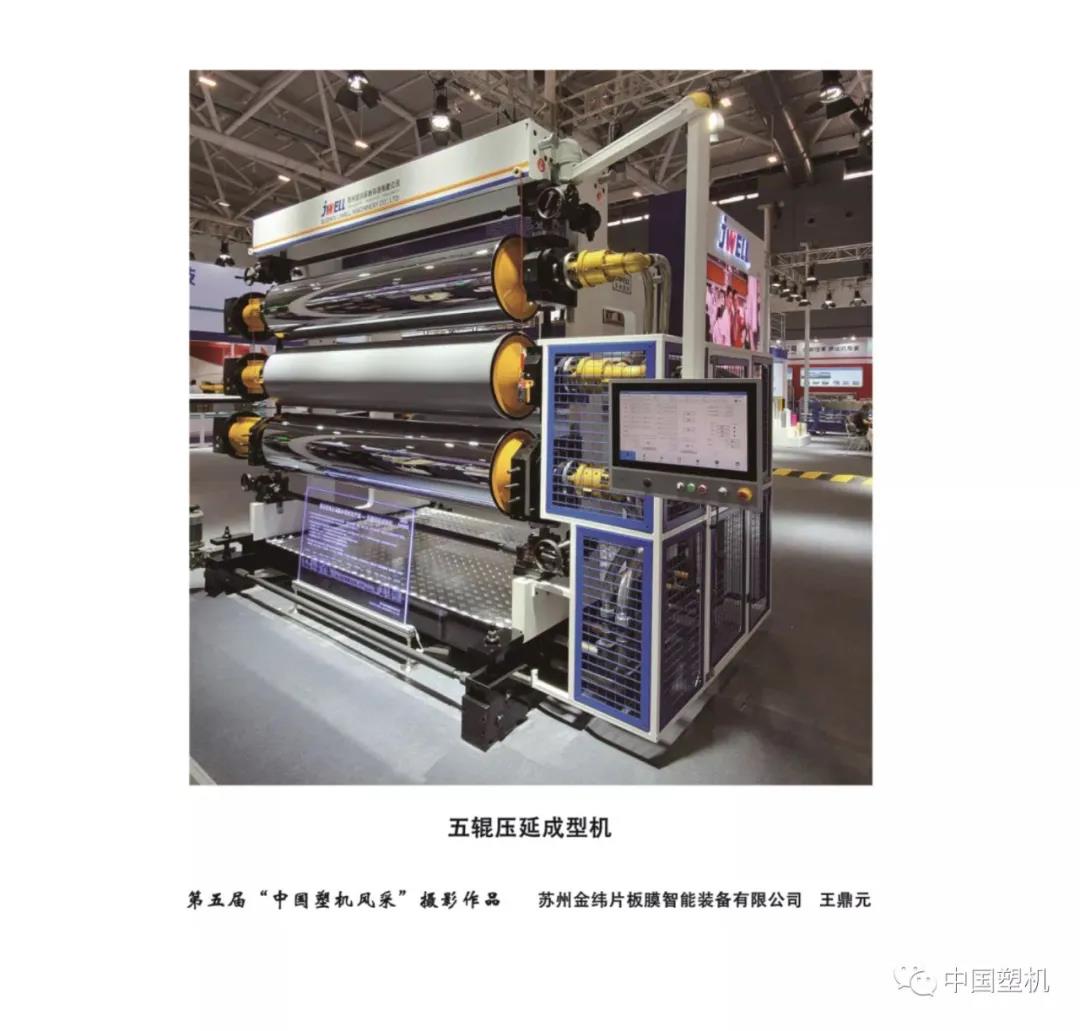

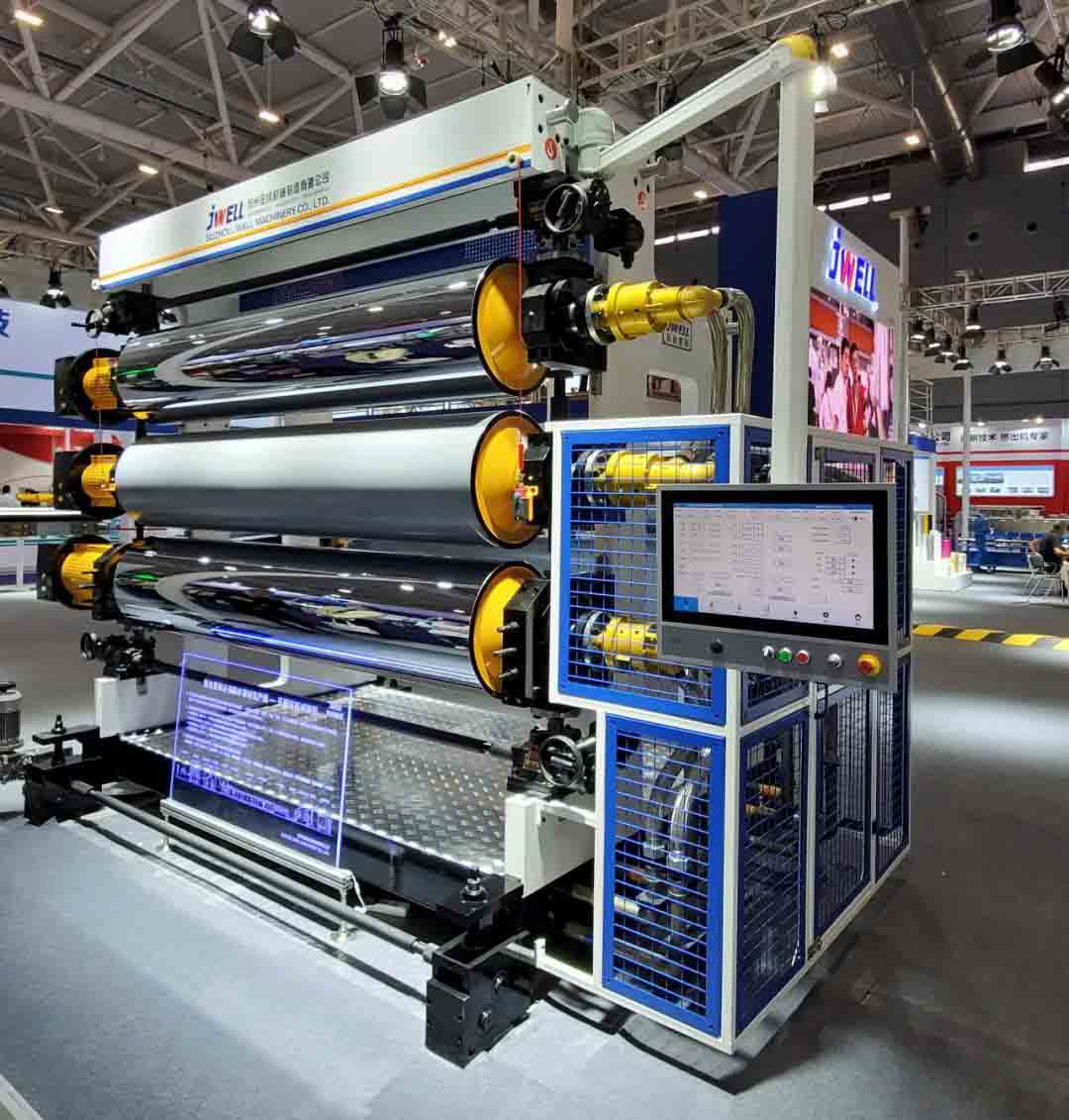

● Lub tshuab calendering tsib-yob yog qhov tseem ceeb ntawm cov kab tsim cov khoom siv tiv thaiv dej sib xyaw ua ke. Cov kab tsim khoom no yog tsim rau cov khoom siv tiv thaiv dej ua los ntawm PVC, TPO, PE thiab lwm yam khoom siv. Cov qauv ntawm cov khoom siv muaj xws li:
Ⅰ) Homogeneous coil (code H): daim nyias nyias uas tsis muaj dej tsis muaj kev txhawb nqa sab hauv lossis cov khoom siv thaub qab;
Ⅱ) Cov khoom siv coiled nrog fiber backing (code L): ib daim nyias nyias tiv thaiv dej sib xyaw rau ntawm qhov chaw qis dua ntawm cov khoom siv coiled nrog cov ntaub xws li polyester tsis-woven ntaub;
Ⅲ) Sab hauv daim nyias nyias (code P): daim nyias nyias tiv thaiv dej uas muaj polyester mesh nyob hauv nruab nrab ntawm daim nyias nyias;
Ⅳ) Sab hauv daim nyias nyias uas muaj zog (code G): daim nyias nyias uas tsis muaj dej thaiv uas muaj iav fiber mesh nyob hauv nruab nrab ntawm daim nyias nyias;
● Kab tsim cov khoom siv tiv thaiv dej tsis sib xyaw ua ke - tshuab calendering tsib-yob Cov kev ntsuas tseem ceeb:
Khoom dav: 1200-2000mm;
Khoom tuab: 0.4-3.0 hli;
Kev sib txawv ntawm qhov tuab: ± 0.02 hli;
Cov lus qhia rau cov menyuam: φ500X2400mm;
Tsav hom: Yaskawa servo tsav;
Tsav tsheb fais fab: 4.4KW

Jwell tam sim no nyob rau lub sijhawm ntawm kev loj hlob sai, thiab txhua yam txuj ci zoo kawg nkaus txuas ntxiv koom nrog tsev neeg Jwell. Hauv lub chaw ua haujlwm tsim khoom, koj yuav pom tias muaj ntau lub ntsej muag hluas nyob hauv qab lub kaus mom hlau, thiab cov pab pawg ntawm cov tub ntxhais hluas uas muaj zog thiab mob siab rau, koom nrog Jwell thiab loj hlob ua ke nrog Jwell. Ntawm no, lawv yog cov engineers tshiab thiab "cov neeg ua haujlwm tshiab" hauv kev tsim kho ntawm "Centennial Jwell".

Kev thaij duab yog ib hom lus uas qhia txog lub ntiaj teb sab hauv nrog cov duab; kev thaij duab yog daim ntawv qhia tes ntawm kev vam meej, siv lub teeb thiab duab ntxoov ntxoo los khaws cov khoom zoo nkauj. Ua tsaug rau txoj haujlwm nyuaj ntawm tus neeg teeb tsa Tuam Tshoj Plastics Machinery Industry Association, thiab peb tos ntsoov rau qhov kev sib tw thaij duab tom ntej. Peb yuav pom koj sai sai no.
